Dedicated to solution of wood chips
conveying

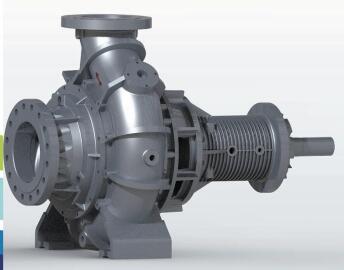

Professional wood chips conveyer
equipment
Aiming at wood chips conveying
process of cooking tower in chemical
pulping plant, Jiangsu Kaifeng Pump
Valve has launched dedicated single
- blade conveyer
for wood chips. The equipment has
overcome the technical difficulty in
easy blockage, low lift, and in
pumping high lift and long distance,
for wood chips conveying. For
occasions requiring high lift,
method of installation in series is
adopted to meet design requirement
perfectly.
Scope of application
work section, such as conveying wood
chips, sewage and similar medium, in
which winding easily occurs, in
pulping and papermaking industry.

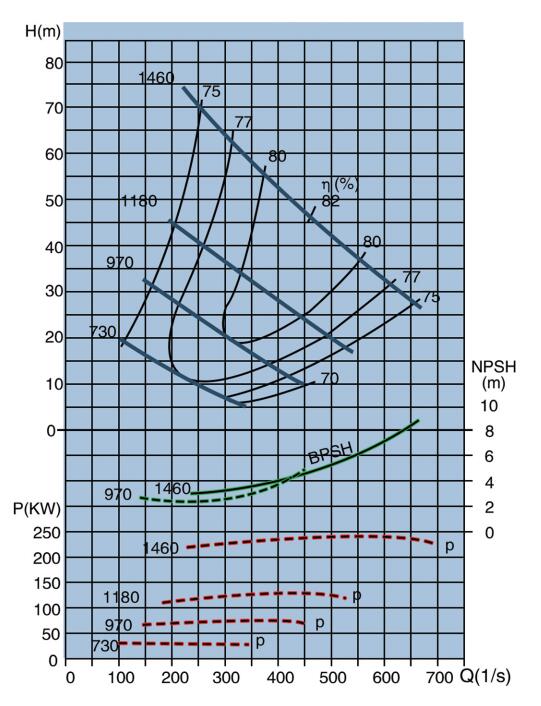

Design
parameters
• Annual output of single machine is
150000 tons to 1.8 million tons
• Flow rate: 400m³/h - 2500m³/h
• Lift: 8m - 75m
• Medium feeding temperature up to
92°C
• Pressure - containing member can
bear pressure up to 25 kg
• 1.4469, and 1.4517 are selected as
materials, which are sprayed with
wear resistant coating
Kaifeng Pump Valve’s solution of
wood chips Conveying

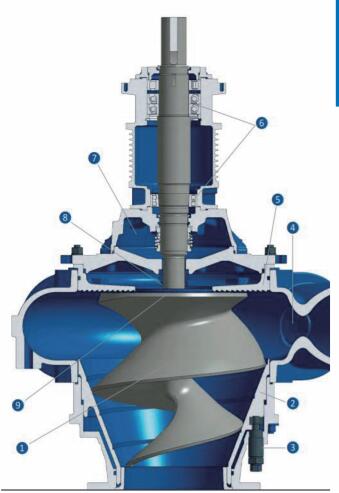

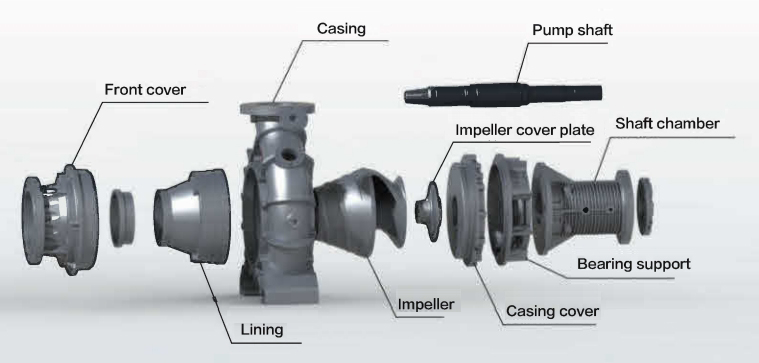

• Heavy-duty single blade impeller
• Replaceable liner protecting pump
casing
• Back-and-forth adjustable nut
ensuring the optimal gap from
impellor
• Detachable viewing window
installed on pump casing
• Rear uncapping design, convenient
for disassembly, not requiring to
move assembly parts such as inlet
pipe and outlet pipe
• Heavy-duty bearing working with
heat-dissipation bearing chamber
ensures smooth operation
• Combined mechanical seal enables
convenient maintenance, with several
optional sealing modes
• Cone-shaped installation method is
adopted for pump shaft and impeller,
with more precise positioning

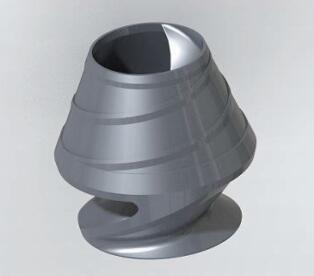

Single - blade wide flow path design
ensures passage. Unique impeller
design is perfect in properties of
anti - blocking and anti - winding.
With incessant innovative design
capacity, attitude of constantly
striving for perfection, Kaifeng
Pump Valve is dedicated to providing
superior professional conveyor
equipment for you.
|
