 Technical
Data
FP Series
Fan Pumps can be used as：
• Headbox pumps for paper, tissue
and board production and in pulp
dewatering
• screent cleaner pumps
• Backwater (white water) pumps

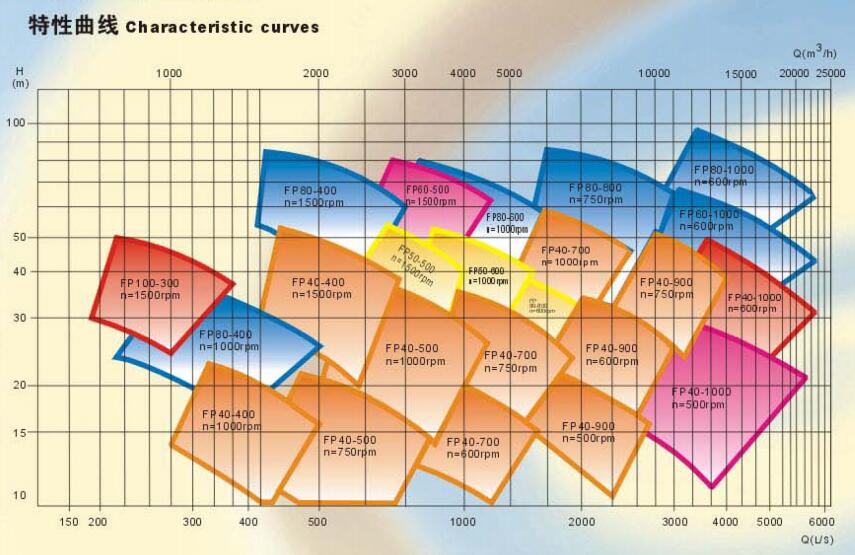

characteristic curves

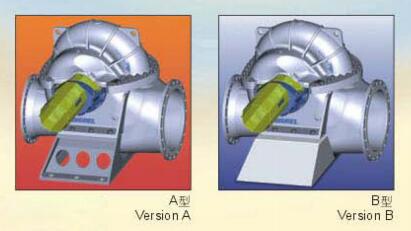

Design of the Base
Version A：Pump with pedestal made of
GG 25,can be mounted quickly and
easily on aflat surface
Version B：Pump without pedestal, to
be mounted on a pre-fabricated
concrete base
JiangSu kaifeng has extensive know how for
all processes from wood to paper
Pulp and paper producers all over
the country rely on our innovative
system solutions, which are based on
our excellent process know how and
continual development of key
components.Our latest development
for conveyance of stock suspensions

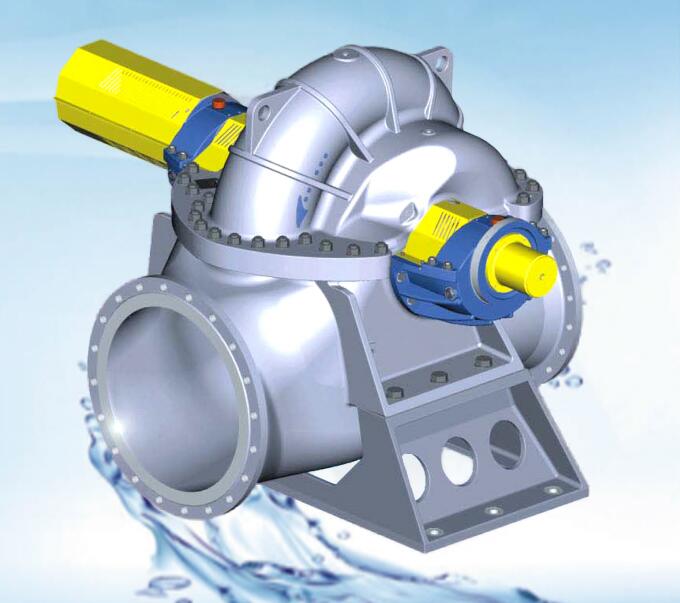

is the FP Series Fan Pump in a
compact design.
Optimum Flow Pattern
State-of-the-art calculation and
computer-aided testing methods have
yielded a revolutionary hydraulic

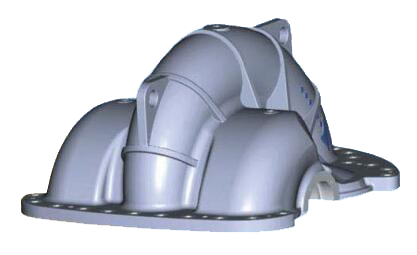

shape for the impeller and casing,
giv ing:
•
Maximum efficiency
• Lowest pulsation
• A wide range of operation
Bipartite
double-flow impeller
The impeller is equipped with
stagged vanes and features low
pulsation high efficiency and
optimum flow.
Gre ase
or oil-lubricated shaft bearings
Compact sturdy anti-friction
bearings ensure long life as well as
ease of installation due to bip
artite casing.
Pump
shaft designed for dual drive
The amply-sized shaft gives
stable,low-vibration operation.
Shaft
seals with separate sealing casing
The sealing casing can be provided
either with a stuffing box packing
or different types of me chanical
seals as standard.
Stuffing box packing
double mechanical seal
|
