Technical Description
Structure

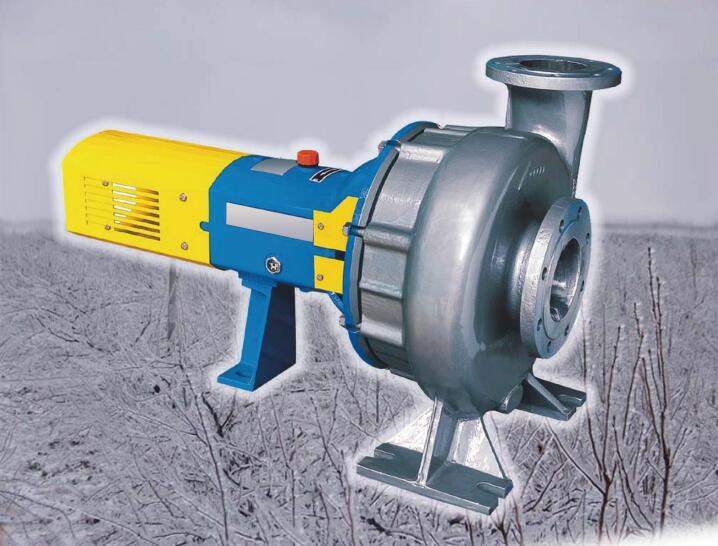

Single-stage, single-flow,
volute-type vortex pump. Based on
its process design, the impeller,
stuffing box, shaft seal, and
bearing housing can be disassembled
and/or installed as a "cartridge
unit" without disconnecting the
suction and discharge pipes.
Impeller
A specially designed vortex-type
impeller is adopted, which offers
the following advantages:
● No axial thrust
● Generates a strong vortex
during operation, with most of the
medium directly pumped by the vortex
● Minimal impeller wear and
long service life
● Easy to maintain
● Non-clogging
Bearings
The pump shaft is supported by
imported SKF bearings lubricated
with oil or grease. Cylindrical
roller bearings are installed on the
pump end, while two angular contact
ball bearings are mounted
back-to-back on the drive end. The
oversized shaft ensures
vibration-free operation.

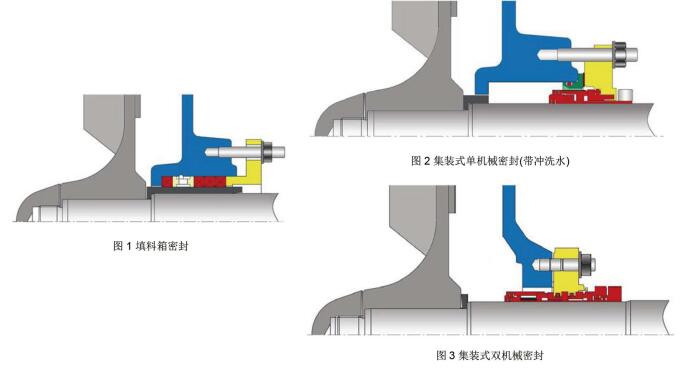

Shaft Seal
Different types of seal
configurations can be selected
according to specific operating
requirements.
Technical Data
The KCP-type vortex pump is
available in 8 different
specifications. For detailed data of
your purchased pump, please refer to
the data sheets, characteristic
curves, and dimensions in the
appendix.

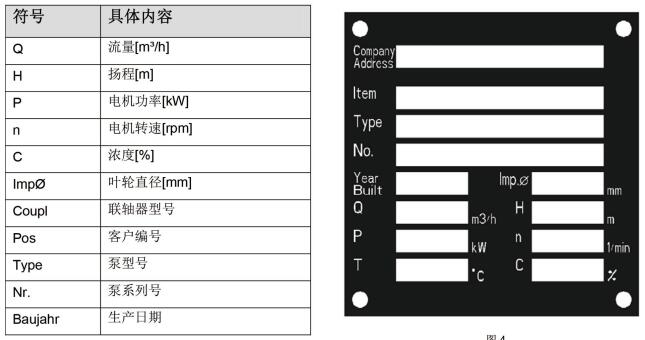

Nameplate
Each pump is equipped with a
nameplate fixed on the pump body,
providing important information
related to the pump.
Pump
Selection

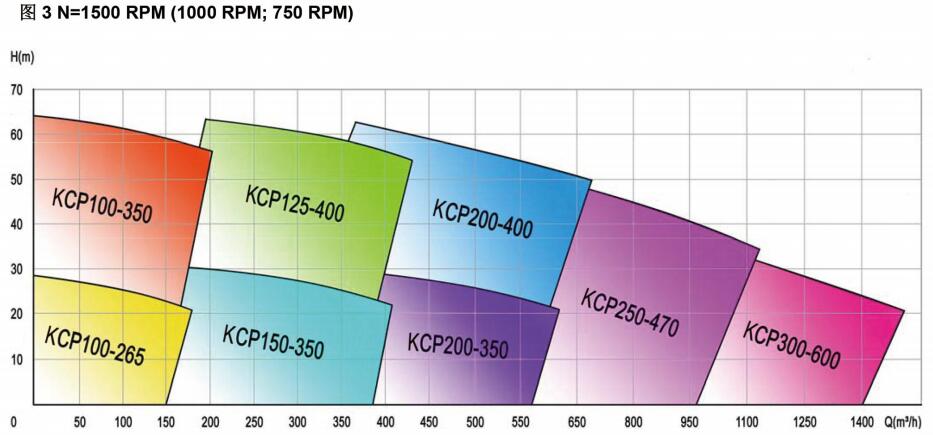

Characteristic Curves
We can provide 8 different models of
KCP pumps.

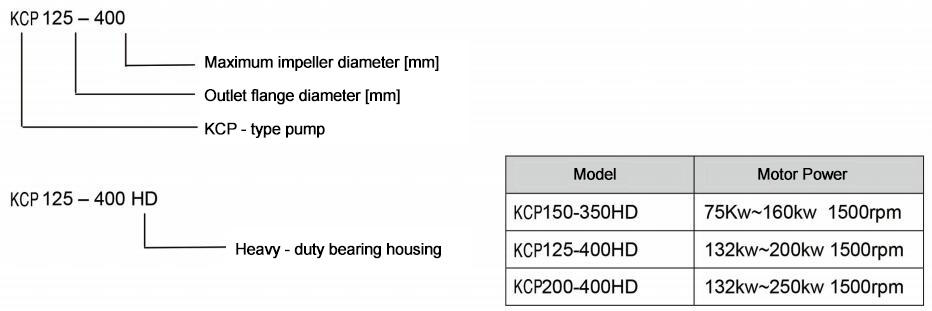

Model Description
Material Selection
To suit different working
conditions, we offer two material
configurations for your selection:
|
