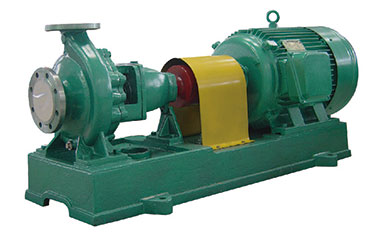

The IH - type pump is a single -
stage, single - suction (axial
suction) corrosion - resistant
centrifugal pump, used for
transporting liquids that
contain no solid particles, are
corrosive, and have a viscosity
similar to water. The medium
temperature ranges from - 20°C
to 105°C, and can be higher when
cooling measures are adopted as
required. It is applicable to
sectors such as petroleum,
chemical industry, metallurgy,
electric power, papermaking,
food, pharmaceutical, and
synthetic fiber industries.
•
Flow rate Q: 0.3 - 400m³/h
• Head H: 5 - 125m
• Rotational speed n:
2900, 1450r/min
• Motor power: 0.55 - 90kw
• Inlet diameter: 32 -
200mm
• Maximum operating
pressure: 1.6MPa
The
IH - type pump is a series of
products jointly designed by the
national pump industry in
accordance with the ISO2858
international standard. It
features a wide performance
range, high efficiency, a high
level of standardization,
generalization, and
serialization, and easy
maintenance.

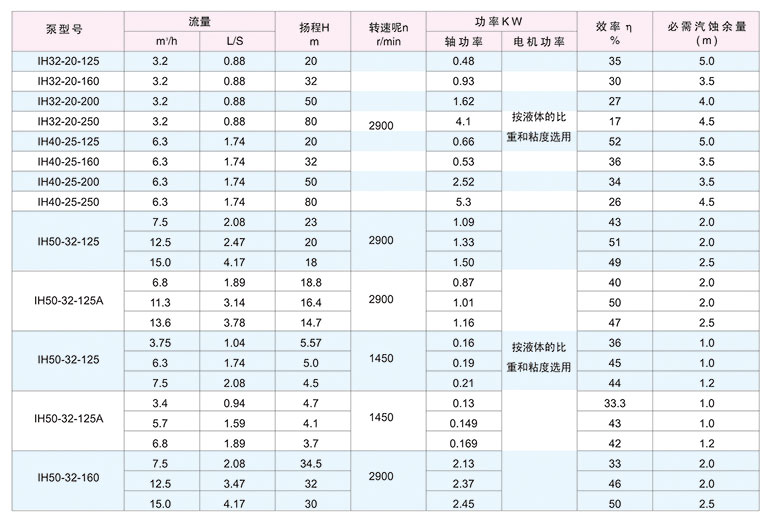

The
IH - type series of pumps has 40
basic types, among which 33 are
dual - speed (2900, 1450r/min).
After impeller diameter cutting
variations in two forms, A and
B, the number of specifications
reaches 112.
