Overview

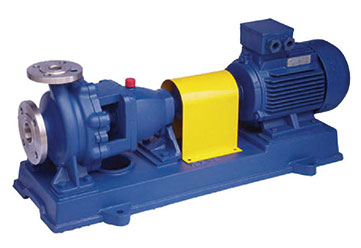

The CZ series standard chemical
pumps are horizontal,
single-stage, single-suction
centrifugal pumps. Their
dimensions and performance
comply with the DIN24256/ISO2858
standards.
The performance range of the CZ
series standard chemical pumps
covers all the performance
parameters of the IH series
standard chemical pumps. Its
indicators such as efficiency
and cavitation performance
exceed those of the IH-type
pumps, and it can be
interchanged with IH-type pumps
on a single-machine basis.
Applications
Transporting low-temperature or
high-temperature liquids;
neutral or corrosive liquids;
clean liquids or liquids
containing solid particles. It
is particularly suitable for:
•
Chemical and
petrochemical industries
•
Paper mills and
pulp industry
•
Painting
industry (processes such as
degreasing 磷化 (phosphating),
electrophoresis, etc.)

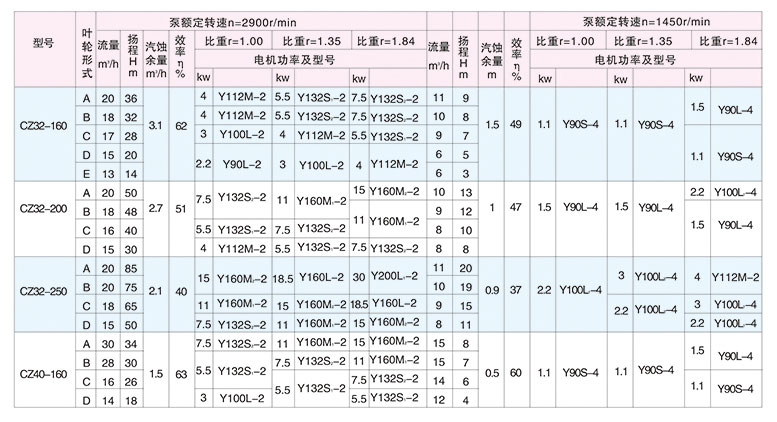

Performance
•
Flow rate (Q): Up to 2000 m³/h
• Head (H): Up to 160 m
• Working pressure (P):
2.5 MPa
• Working temperature (t):
-80°C ~ +300°C
• Flat characteristic
curve, low cavitation value,
high efficiency, and these
characteristics are maintained
even under partial load.
